Weldolet
Stavanger Stal was incorporated in 1991 in the field of metal industries as a leading ASTM A105 Weldolet manufacturer. We recognized that the piping industry had two demands from a ASTM A105 Weldolet manufacturer. First, a quality
product designed to work efficiently and economically. Secondly, a product delivered when needed. Stavanger Stal built its business on these two simple, yet vital foundations and continues to provide exceptional ASTM A105 Weldolet
with unsurpassed service.
In Stavanger Stal highly strict quality controls are implemented on every step of production to ensure the product quality delivering to the market. Through years of hard work and continuing
improvement of quality, we are certified and accredited with the ISO 9001:2015 for our entire quality system
With years of experience in manufacturing ASTM A105 Weldolet. we offer high quality, lower cost but the best
service. We welcome your inquiries for complete projects or just one fitting.
ASTM A105 Weldolet Specification
-
Variations:
-
3000# & 6000#
-
But-weld : SCH10S - SCH40S - SCH80S - SCH160 - SCHXXS
-
Standards:
-
ASTM B564 - ASME SB564 - 'Standard Specification for Nickel Alloy Forgings'
-
ASME B16.11 - 'Forged Fittings Socket - Welding and Threaded'
-
MSS SP-97 - 'Integrally Reinforced Forged Branch Outlet Fittings - Socket Welding, Threaded and Buttwelding Ends'
-
Size : 1/8" NB to 4" NB. (Socket weld & Threaded)
-
Class : 150, 3000, 6000, 9000
-
Dimensions:
Outlet : 1/2" à 8"
Run pipe : 1/2" à 60"
-
Stainless Steel
-
ASTM / ASME SA 182 F304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
-
Carbon Steel
-
ASTM / ASME A 105.
ASTM / ASME A 350 LF 2.
-
Alloy Steel
-
ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.
What Makes Us Different
Stavanger Stal was incorporated in 1991 in the field of metal industries as a leading ASTM A105 Weldolet manufacturer. We recognized that the piping industry had two demands from a ASTM A105 Weldolet manufacturer.First, a quality
product designed to work efficiently and economically. Secondly, a product delivered when needed. Stavanger Stal built its business on these two simple, yet vital foundations and continues to provide exceptional ASTM A105
Weldolet with unsurpassed service.
Stavanger Stal employees take personal pride in production and delivery efforts and are committed to a high standard of excellence for customer service. These commitments are
carried throughout our organizationdaily from answering the first call to shipping the last product out the door.
ASTM A105 Weldolet Dimension
Dimensions Size on Size Weldolet® - STD - MSS SP97
| NPS | A | B | C | D | L | |
| 1/2 | INCH MM |
3/4 19.05 |
1-3/8 34.93 |
15/16 23.81 |
5/8 15.88 |
1-3/16 30.16 |
| 3/4 | INCH MM |
7/8 22.23 |
1-5/8 41.28 |
1-3/16 30.16 |
13/16 20.64 |
1-7/16 36.51 |
| 1 | INCH MM |
1-1/16 26.99 |
2 50.80 |
1-7/16 36.51 |
1-1/32 26.19 |
1-1/16 26.99 |
| 1¼ | INCH MM |
1-1/4 31.75 |
2-3/8 60.3 |
1-3/4 44.45 |
1-3/8 34.93 |
2-1/16 52.39 |
| 1½ | INCH MM |
1-5/16 33.34 |
2-7/8 73 |
2 50.80 |
1-5/8 41.28 |
2-1/4 57.15 |
| 2 | INCH MM |
1-1/2 38.10 |
3-1/2 88.90 |
2-9/16 65.09 |
2-1/16 52.39 |
2-11/16 68.26 |
| 2½ | INCH MM |
1-5/8 41.28 |
4-1/16 103.19 |
3 76.20 |
2-7/16 61.91 |
3-1/16 77.79 |
| 3 | INCH MM |
1-3/4 44.45 |
4-13/16 122.24 |
3-11/16 93.66 |
3-1/16 77.79 |
3-1/2 88.90 |
| 3½ | INCH MM |
2 50.80 |
5-3/8 136.53 |
3-7/8 98.43 |
3-9/16 90.49 |
3-7/8 98.43 |
| 4 | INCH MM |
2 50.80 |
6 152.40 |
4-3/4 120.65 |
4 101.60 |
4-1/4 107.95 |
| 5 | INCH MM |
2-1/4 57.15 |
7-1/8 180.98 |
5-9/16 141.29 |
5-1/16 128.59 |
5-1/16 128.59 |
| 6 | INCH MM |
2-3/8 60.3 |
8-1/2 215.90 |
6-11/16 169.86 |
6-1/16 153.99 |
5-11/16 144.46 |
| 8 | INCH MM |
2-3/4 69.85 |
10-3/8 263.53 |
8-11/16 220.66 |
7-15/16 201.61 |
7-1/16 179.39 |
| 10 | INCH MM |
3-1/16 77.79 |
12-9/16 319.09 |
10-13/16 274.64 |
10 254.00 |
8-7/16 214.31 |
| 12 | INCH MM |
3-3/8 85.73 |
14-7/8 377.83 |
12-13/16 325.44 |
12 304.80 |
9-3/4 247.65 |
| 14 | INCH MM |
3-1/2 88.90 |
16-1/8 409.58 |
14-1/16 357.19 |
13-1/4 336.55 |
10-1/2 266.70 |
| 16 | INCH MM |
3-11/16 93.66 |
18-1/4 463.55 |
16-1/16 407.99 |
15-1/4 387.35 |
11-11/16 296.86 |
| 18 | INCH MM |
4-1/16 103.19 |
20-3/4 527.05 |
18-5/8 473.08 |
17-1/4 438.15 |
13-1/16 331.79 |
| 20 | INCH MM |
4-5/8 117.48 |
23-1/16 585.79 |
20-1/16 509.59 |
19-1/4 488.95 |
14-5/8 371.48 |
| 24 | INCH MM |
5-3/8 136.53 |
27-7/8 708.03 |
25-1/8 638.18 |
23-1/4 590.55 |
17-3/8 441.33 |
| NPS | A | B | C | D | L |
Dimensions Weldolet® Reducing - STD - MSS SP97
| NPS | A | B | C | |
| 1/2 | INCH MM |
3/4 19.05 |
1-3/8 34.93 |
15/16 23.81 |
| 3/4 | INCH MM |
7/8 22.23 |
1-3/4 44.45 |
1-3/16 30.16 |
| 1 | INCH MM |
1-1/16 26.99 |
2-1/8 53.98 |
1-7/16 36.51 |
| 1¼ | INCH MM |
1-1/4 31.75 |
2-9/16 65.09 |
1-3/4 44.45 |
| 1½ | INCH MM |
1-5/16 33.34 |
2-7/8 73 |
2 50.80 |
| 2 | INCH MM |
1-1/2 38.10 |
3-1/2 88.90 |
2-9/16 65.09 |
| 2½ | INCH MM |
1-5/8 41.28 |
4-1/16 103.19 |
3 76.20 |
| 3 | INCH MM |
1-3/4 44.45 |
4-13/16 122.24 |
3-11/16 93.66 |
| 3½ | INCH MM |
1-7/8 47.63 |
5-5/8 142.88 |
4 101.60 |
| 4 | INCH MM |
2 50.80 |
6 152.40 |
4-3/4 120.65 |
| 5 | INCH MM |
2-1/4 57.15 |
7-1/16 179.39 |
5-9/16 141.29 |
| 6 | INCH MM |
2-3/8 60.3 |
8-1/2 215.90 |
6-11/16 169.86 |
| 8 | INCH MM |
2-3/4 69.85 |
10-3/8 263.53 |
8-11/16 220.66 |
| 10 | INCH MM |
3-1/16 77.79 |
12-11/16 322.26 |
10-13/16 274.64 |
| 12 | INCH MM |
3-3/8 85.73 |
14-7/8 377.83 |
12-13/16 325.44 |
| 14 | INCH MM |
3-1/2 88.90 |
16-1/8 409.58 |
14-1/16 357.19 |
| 16 | INCH MM |
3-11/16 93.66 |
18-1/4 463.55 |
16-1/16 407.99 |
| 18 | INCH MM |
3-13/16 96.84 |
20-1/2 520.70 |
18-1/16 458.79 |
| 20 | INCH MM |
4 101.60 |
22-1/2 571.50 |
20 508.00 |
| 24 | INCH MM |
4-9/16 115.89 |
27-1/8 688.98 |
24-3/16 614.36 |
| NPS | A | B | C |
| NPS | Outlet Sizes STD and XS NPS 1/2 - 4 | ||||||||||
| 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 31/2 | 4 | ||
| 3/4 |
INCH |
1-1/4 31.75 |
|||||||||
| 1 |
INCH |
1-3/8 34.92 |
1-1/2 38.10 |
||||||||
| 1¼ |
INCH |
1-9/16 39.68 |
1-11/16 42.86 |
1-7/8 47.62 |
|||||||
| 1½ |
INCH |
1-11/16 42.86 |
1-13/16 46.03 |
2 50.80 |
2-3/16 55.56 |
||||||
| 2 |
INCH |
1-15/16 49.21 |
2-1/16 52.38 |
2-1/4 57.15 |
2-7/16 61.91 |
2-1/2 63.50 |
|||||
| 2½ |
INCH |
2-3/16 55.56 |
2-5/16 58.73 |
2-1/2 63.50 |
2-11/16 68.26 |
2-3/4 69.85 |
2-15/16 74.61 |
||||
| 3 |
INCH |
2-1/2 63.5 |
2-5/8 66.67 |
2-13/16 71.43 |
3 76.20 |
3-1/16 77.78 |
3-1/4 82.55 |
3-3/8 85.72 |
|||
| 3½ |
INCH |
2-3/4 69.85 |
2-7/8 73.02 |
3-1/16 77.78 |
3-1/4 82.55 |
3-5/16 84.13 |
3-1/2 88.9 |
3-5/8 92.07 |
3-3/4 95.25 |
||
| 4 |
INCH |
3 76.2 |
3-1/8 79.37 |
3-5/16 84.13 |
3-1/2 88.90 |
3-9/16 90.48 |
3-3/4 95.25 |
3-7/8 98.42 |
4 101.60 |
4-1/8 104.77 |
|
| 5 |
INCH |
3-9/16 90.48 |
3-11/16 93.66 |
3-7/8 98.42 |
4-1/16 103.18 |
4-1/8 104.77 |
4-5/16 109.53 |
4-7/16 112.71 |
4-9/16 115.88 |
4-11/16 119.06 |
4-13/16 122.23 |
| 6 |
INCH |
4-1/16 103.18 |
4-3/16 106.36 |
4-3/8 111.12 |
4-9/16 115.88 |
4-5/8 117.47 |
4-13/16 122.23 |
4-15/16 125.41 |
5-1/16 128.58 |
5-3/16 131.76 |
5-5/16 134.93 |
| 8 |
INCH |
5-1/16 128.58 |
5-3/16 131.76 |
5-3/8 136.52 |
5-9/16 141.28 |
5-5/8 142.87 |
5-13/16 147.63 |
5-15/16 150.81 |
6-1/16 153.98 |
6-3/16 157.16 |
6-5/16 160.3 |
| 10 |
INCH |
6-1/8 155.57 |
6-1/4 158.75 |
6-7/16 163.51 |
6-5/8 168.27 |
6-11/16 169.86 |
6-7/8 174.62 |
7 177.8 |
7-1/8 180.97 |
7-1/4 184.15 |
7-3/8 187.32 |
| 12 |
INCH |
7-1/8 180.97 |
7-1/4 184.15 |
7-7/16 188.91 |
7-5/8 193.67 |
7-11/16 195.26 |
7-7/8 200.02 |
8 203.20 |
8-1/8 206.37 |
8-1/4 209.55 |
8-3/8 212.72 |
| 14 |
INCH |
7-3/4 196.85 |
7-7/8 200.02 |
8-1/16 204.78 |
8-1/4 209.55 |
8-5/16 211.13 |
8-1/2 215.90 |
8-5/8 219.07 |
8-3/4 222.25 |
8-7/8 225.42 |
9 228.60 |
| 16 |
INCH |
8-3/4 222.25 |
8-7/8 225.42 |
9-1/16 230.18 |
9-1/4 234.95 |
9-5/16 236.53 |
9-1/2 241.30 |
9-5/8 244.47 |
9-3/4 247.65 |
9-7/8 250.82 |
10 254.00 |
| 18 |
INCH |
9-3/4 247.65 |
9-7/8 250.82 |
10-1/16 255.58 |
10-1/4 260.35 |
10-5/16 261.93 |
10-1/2 266.70 |
10-5/8 269.87 |
10-3/4 273 |
10-7/8 276.22 |
11 279.40 |
| 20 |
INCH |
10-3/4 273 |
10-7/8 276.22 |
11-1/16 280.98 |
11-1/4 285.75 |
11-5/16 287.33 |
11-1/2 292.10 |
11-5/8 295.27 |
11-3/4 298.45 |
11-7/8 301.62 |
12 304.80 |
| 24 |
INCH |
12-3/4 323.9 |
12-7/8 327.02 |
13-1/16 331.78 |
13-1/4 336.55 |
13-5/16 338.13 |
13-1/2 342.90 |
13-5/8 346.07 |
13-3/4 349.25 |
13-7/8 352.42 |
14 355.60 |
| NPS | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 | 21/2 | 3 | 31/2 | 4 | |
| Outlet Sizes STD and XS NPS 1/2 - 4 | |||||||||||
| NPS | Outlet Size STD NPS 5 - 20 | |||||||||
| 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | ||
| 6 |
INCH |
5-9/16 141.28 |
||||||||
| 8 |
INCH |
6-9/16 166.68 |
6-11/16 169.86 |
|||||||
| 10 |
INCH |
7-5/8 193.67 |
7-3/4 196.85 |
8-1/8 206.37 |
||||||
| 12 |
INCH |
8-5/8 219.07 |
8-3/4 222.25 |
9-1/8 231.77 |
9-7/16 239.71 |
|||||
| 14 |
INCH |
9-1/4 234.95 |
9-3/8 238.12 |
9-3/4 247.65 |
10-1/16 255.58 |
10-3/8 263.52 |
||||
| 16 |
INCH |
10-1/4 260.35 |
10-3/8 263.52 |
10-3/4 273 |
11-1/16 280.98 |
11-3/8 288.92 |
11-1/2 292.10 |
|||
| 18 |
INCH |
11-1/4 285.75 |
11-3/8 288.92 |
11-3/4 298.45 |
12-1/16 306.38 |
12-3/8 314.32 |
12-1/2 317.50 |
12-11/16 322.26 |
||
| 20 |
INCH |
12-1/4 311.15 |
12-3/8 314.32 |
12-3/4 323.9 |
13-1/16 331.78 |
13-3/8 339.72 |
13-1/2 342.90 |
13-11/16 347.66 |
13-13/16 350.83 |
|
| 24 |
INCH |
14-1/4 361.95 |
14-3/8 365.12 |
14-3/4 374.65 |
15-1/16 382.58 |
15-3/8 390.52 |
15-1/2 393.70 |
15-11/16 398.46 |
15-13/16 401.63 |
16 406.40 |
| NPS | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
| Outlet Size STD NPS 5 - 20 | ||||||||||
-

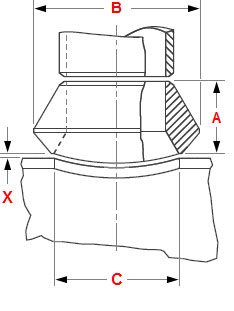

Root Gap - X - "Space" for welding the O'let is raised off the run pipe to establish proper weld gap by placing spacers, e.g. welding rods, under the fitting. This provides a uniform welding gap between the curvature of the run and base of fitting.
-
X=Root Gap not included in L measure.
-
L=Dimensions Center Line of Run Pipe to Face of Weldolet.
-
Bevelled Ends ASME B16.9 and B16.25.
-
Source comes from Bonney Forge (except the sizes in millimeters).
-
Weldolet® is a registered name. Another often used name is Welding Outlet.
